Rotary Conductive Plastic Servo Potentiometer from PANKAJ offers long rotational life, stable output in wide temperature range, high moisture environment, with infinite resolution for manual or mechanized application in variety of fields.
Standard Resistance Values | 1K, 5K & 10K Ω, Others on request |
Resistance Tolerance Standard Special | ±25% ±15% |
Power Rating | 3 Watt @ 40˚C |
Resolution | Essentially Infinite |
Rotational Life Expectancy | 10 Lakh Shaft Revolutions |
Temp. Coefficient of Resistance | ±500 ppm/˚C |
Maximum Wiper Current | 1 mA |
Effective Electrical Angle | 355˚ |
Dielectric Strength at Sea Level | Min. 1000VAC for 1 minute |
Temperature Range | 0˚ to 70˚C |
Housing Diameter | 50 mm |
Housing Height | 24.00 mm |

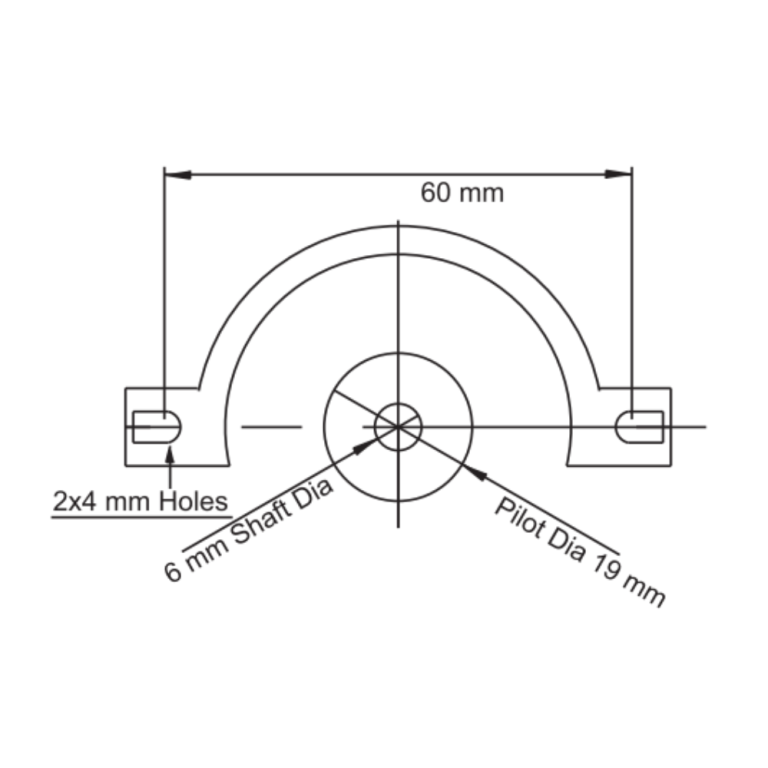

Shaft Diameter | 6 mm |
Shaft Length | 15 mm |
Servo Mounting | Three M3 screws @ 32 mm PCD |
Pilot Diameter | 19 mm x 1.5 mm |
Mechanical Angle of Rotation | 360˚ |
Model No. | Resistance Value in ohms |
RCP-50-A | 1K, 5K, 10K |
