Linear Motion Conductive Plastic Potentiometer LMP-CP is the result of PANKAJ’s Policy to develop new product as import substitute utilizing in-house R & D and manufacturing facilities. The product has wide application in linear motion measurement & controls. Few applications are Press Break, Vacuum Circuit Breakers, Industrial machines & others.
Resistance Range | 5 K Ω |
Power Rating | 0.75 Watt |
Linearity | Better than 0.5% |
Insulation Resistance | 500 MΩ at 500 VDC |
Model : LMP-CP
Stroke Length in mm : 50, 100, 150, 200, 250
Resistance Value, Ω : 5K
Shaft Design : S Standard,: Ball Joint Coupling, 1RB: Rod End Bearing on Rod, 2RB: Rod End Bearing on Both Sides, E: External Spring Return, I: Internal Spring Return (Up to 150 mm)
Model No. | Stroke Length in mm | Resistance Value, Ω | Shaft Design |
LMP-CP |
50, 100, 150, 200, 250 |
5K | S: Standard, Ball Joint Coupling
|
1RB: Rod End Bearing on Rod | |||
2RB: Rod End Bearing on Both Sides | |||

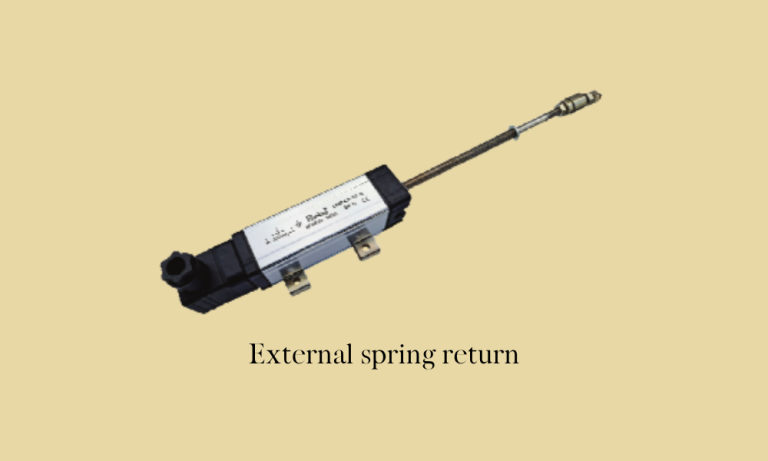

E: External Spring Return | |||
I: Internal Spring Return (Up to 150 mm) |
